LabMaster ^® 60 pin High-Density Cable

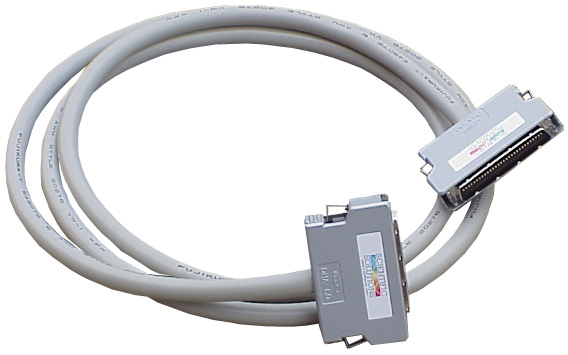

LabMaster 60pin High-Density Cable

The LabMaster 60pin High-Density Cable is made to connect to the back of LabMaster cards that utilize the high-density 60pin connector. The connector on the LabMaster cards and the cable connector form a "tongue-and-groove" pair. The pair is polarized so that the cable can only be connected in the correct orientation. The cable has retaining clips that latch when the cable is attached to the connector on the back of the LabMaster card. Two release latches on the cable connector are used to release the connection and hence remove the cable from the LabMaster connector.

The 60pin cable comes in a standard length of 1.5 meters and can be special ordered in a 3 meter length for special applications.

The LabMaster 60pin Cable provides the following features:

60 signal connections
- High density connector provides 60 signal connections thru a physically small connector
- Connections to LabMaster cards using the 60pin connector

Polarized connector
- Eliminates errors in making the connection and protects equipment

Latched connectors
- Creates a strong connection without the need for thumb-screws
- Minimizes cable disconnections when moving equipment

Flexible Cable Material
- The cable is made of shielded cable material that provides electrical shielding, yet is flexible and easy to bend and move.

Technical Specifications

LabMaster 60pin Cable
Length	1.5 meter
Connection	60pin tongue-and-groove
Polarized Connection	yes
Retaining Latches	yes
Shielding	Foil shielding and drain wire

Specifications subject to change without notice.
