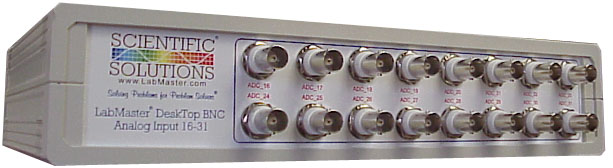

LabMaster DeskTop BNC Ai (Front
showing the BNC connections)
The DeskTop BNC Analog Input (referred to as the DeskTop BNC Ai) provides convenient industry standard BNC connections for the LabMaster Analog Input signals in a small compact desktop unit measuring only 11" wide by 2" high by 7" deep (280mm x 51mm x 178mm). It is made to stack on top of your existing DeskTop BNC unit to provide an additional 16 Analog Input connections.
Up to three of the DeskTop BNC Ai units can be connected to the DeskTop BNC to provide a total of 64 Analog Input connections!
The small size and the stacking of this unit on your existing
DeskTop BNC unit makes it ideal for the laboratory bench top where
space is at a premium.
BNC connections are ideal for many applications. They are widely used and standard patch cables are easily obtained. They are rugged, yet easy to use and stay connected with the "twist-on" locking feature of the connector.
The DeskTop BNC Ai provides additional Analog Input connections to
your existing DeskTop BNC unit. You can connect up to three of
the DeskTop BNC Ai units to your DeskTop BNC. The DeskTop BNC has
16 analog input channels (Ain 0 to 15). If you add just one
DeskTop BNC Ai (Ain 16 to 31), you will have 32 BNC connections for
your Analog Inputs. If you add a second unit (Ain 32 to 47) you
will have 48 BNC connections for your Analog Inputs. And if you
add a third unit (Ain 48 to 63) you will 64 BNC connections for your
Analog Input signals.

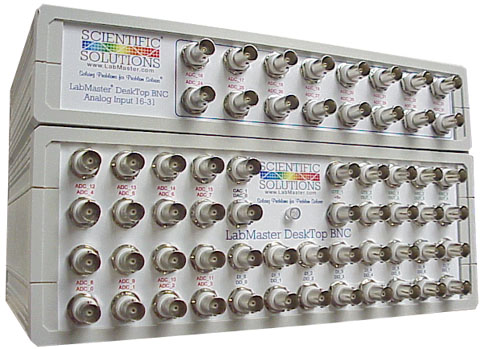

The following picture shows the front of the DeskTop BNC unit
(bottom) and the DeskTop BNC Ai unit (top). The bottom unit
provides 16 Analog input signals and also the Analog Out, Digital In,
Digital Out and Counter / Timer signals. The Top unit provides an
additional 16 Analog Input connections bringing the total, in this
case, to 32 BNC Analog Inputs.

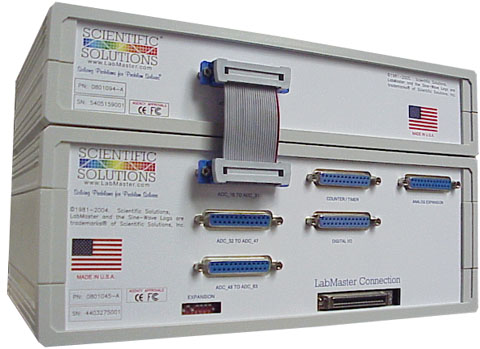

The next picture shows the back view of the DeskTop BNC unit on the
bottom with a single DeskTop BNC Ai unit on top. The
three DB25F connections aligned vertically along the left side of the
bottom unit are used
to connect to the DeskTop BNC Ai units. The DeskTop BNC Ai comes
with a short cable that connects between the DeskTop BNC and the
DeskTop BNC Ai unit. If you had more DeskTop BNC Ai units, they
would stack on top and connect with a similar, but longer, cable.
LabMaster DeskTop BNC (bottom) and DeskTop BNC Ai (top) - Back View
