LabMaster ® LabRack ® BNC-16 / DB25

LabRack BNC-16 / DB25
LabMaster LabRack BNC-16 / DB25 (Front View showing the BNC and DB25 connections)

The LabRack BNC-16 / DB25 provides convenient industry standard BNC connections for 16 of the LabMaster signals in a small compact 1U rackmount unit measuring only 19" wide by 1.75 " high by 14" deep (483mm x 44mm x 300mm).  In addition to the BNC connections, the unit also features a standard DB25M connector.

Internally, each BNC connector has two wires - one for signal, and the other for ground.  The DB25 also has a wire for each of the 25 pins.  Also inside the unit is a full custom screw terminal that has "ALL" of the LabMaster signals.  This unit provides the user with the ability to "customize" the front panel connections.  Many applications don't need all of the signals that the LabMaster can handle.  The LabRack BNC-16 / DB25 was created for those applications that just need a few of the signals in a small rackmount unit.  For those applications that need all of the signals, Scientific Solutions offers a different product, The LabRack BNC unit.

How do you configure the LabRack BNC-16 / DB25?  You can either order the unit pre-wired to what you want, or when you get the unit just open it up and make the desired connections from the back of the BNC connectors and/or DB25 connector  (wires already attached) to the internal screw terminals.  Inside the unit, you will also find a set of "labels" that can be placed on the front panel under each of the BNC connectors.  There is a label for each of the signals available on the screw terminal.

For example, if you wanted 16 Analog input signals and 16 Digital I/O signals; then you could connect the 16 BNC connections to the Analog Inputs of the screw terminals and the DB25 to the Digital I/O signals of the screw terminals.  Then you would use the AIN 0, AIN 1, AIN 2, ...AIN 15 labels and apply these to the front panel.  That's all there is to it!  Underneath the DB25 connector is already written "Digital I/O" as this connection is intended for the the Digital I/O signals including Counter / Timer and control.  You could just as easily connect the Analog Input / Output signals to the DB25 and/or the Digital I/O and Counter / Timer signals to the BNC is really up to you!

The LabRack BNC-16 / DB25 provides the convenience of a fully custom unit with the cost savings of an off-the-shelf design.  You "mechanically program" the unit by wiring the 16 BNC connections and DB25M connection to any of the signals on the internal screw terminal.  You choose the signals you want, in a convenient 1U rackmount unit!

BNC connections are ideal for many applications. They are widely used and standard patch cables are easily obtained. They are rugged, yet easy to use and stay connected with the "twist-on" locking feature of the connector.

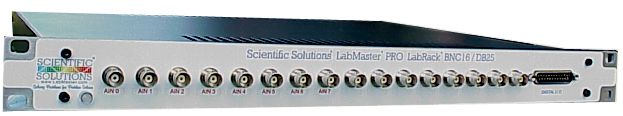

Front of the LabRack BNC-16 / DB25 unit:

LabRack BNC-16 / DB25 Front View
LabMaster LabRack BNC-16 / DB25 (Front View showing the BNC and DB25 connections)
This photo shows a unit that has been configured for 8 Analog Inputs.

Inside the LabRack BNC-16 / DB25 is a Full Screw Terminal:

LabRack BNC-16 / DB25 Inside View
Inside of unit showing wiring and screw terminals

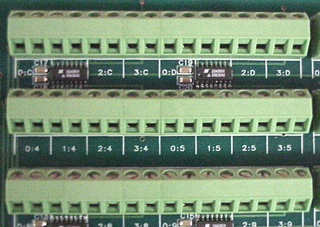

Screw Terminal Close
Close-up  picture of the screw terminals inside of the unit
ST-BNC 20 Label
Picture of the labels included with the unit (labels are pre-cut around the words!)

Back of the LabRack BNC-16 / DB25 unit:

LabRack BNC-16 / DB25 Back View
LabMaster LabRack BNC-16 / DB25 Back View (showing LabMaster Connection)
